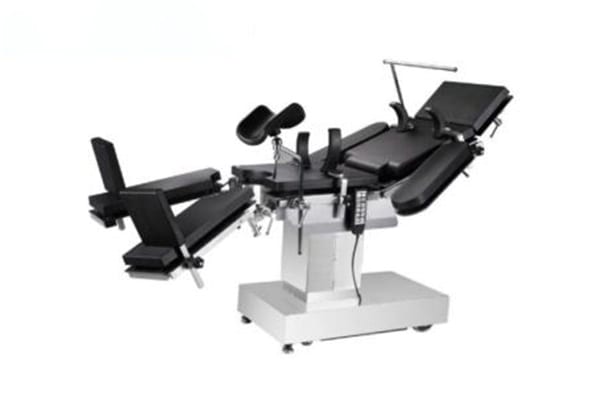

FGT-100, Operating Table, Hydraulic, Motorized, C Arm Compatible, Orthopedic, Cheap Price, OEM
|
Serial number |
Number |
Technical Parameters |
Quantity |
|
1 |
|
Table length/width：2010/500mm |
|
|
2 |
|
The minimum height of the operating table is 760mm and the maximum is 1010mm |
|
|
3 |
|
The maximum tilt angle of forward and backward：22°/32° |
|
|
4 |
|
The maximum tilt angle of left and right：20°/20° |
|
|
5 |
|
The maximum angle at which the headboard folds up and down：60°/70° |
|
|
6 |
|
The maximum angle at which the leg board are folded up/down/outward:15°/85°/90° |
|
|
7 |
|
The maximum angle at which the back panel folds up and down:70°/15° |
|
|
8 |
|
Waist bridge：120mm（optional） |
|
|
|
|
Configuration list |
|
|
1 |
|
Anesthesia rack |
1 |
|
2 |
|
Shoulder support |
2 |
|
3 |
|
Body support |
2 |
|
4 |
|
Single layer shelf |
2 |
|
5 |
|
Feet support |
2 |
|
6 |
|
Feet plate |
2 |
|
7 |
|
Sliding block |
8 |
|
8 |
|
Mattress |
1 |
|
9 |
|
Power line |
1 |
|
10 |
|
Hand controller |
1 |
|
11 |
|
Long slider |
2 |
