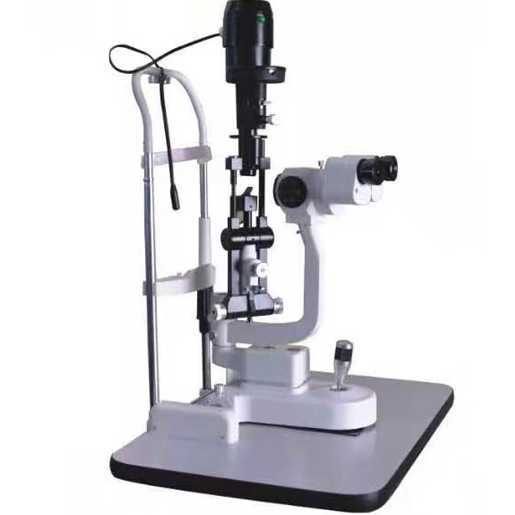

Ophthalmology Slit Lamp, Upper Light Source

Basic slit lamp with two-step magnifications: 10x, 16x

All the lens are multi-coated, midewproof and anti-reflection

Coverging optical path, excellent optical performance gives a super clear image

Incoterms: EXW/FOB/CIF

MOQ: 1 pcs

Port: Shanghai

Supply Ability: 1000 pcs per month

Product Detail

Microscope Type: Converging/Stereomicroscope

Eye Piece: 10x

Magnification: 10x, 16x

Field of View: φ23mm, φ14mm

Adjustable Pupil Distance: 55~75mm

Adjustable Diopter: ±8D

Slit Width: 0~10mm adjustable

Slit Length: 1~10mm adjustable

Slit Angle: 0~180° adjustable

Aperture Diameter: φ0.2mm, φ2mm, φ3mm, φ5mm, φ8mm, φ10mm

Filter: Heat absorption, Grey, Red free, Cobalt blue

Illumination Bulb: 12V/50W halogen bulb
